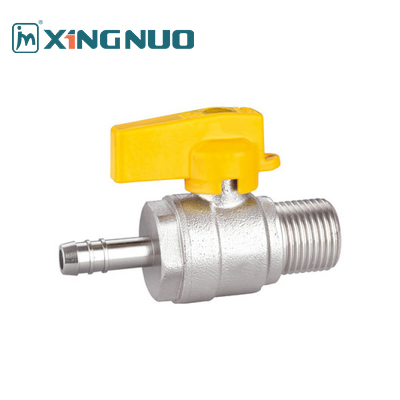

male threaded valve Smooth Brass Gas Ball Valve With Hose Connector X Male PTFE Seal Valve

Name: male threaded valve Smooth Brass Gas Ball Valve With Hose Connector X Male PTFE Seal Valve
Brand: Taizhou XingNuo
Price: 1 USD

Brand Name : Taizhou XingNuo

Model Number : AV1029-M

Place of Origin : Zhejiang Taizhou

MOQ : 3000Pcs

Payment Terms : T/T

Packaging Details : Xingnuo Package

Stem Material : Brass

Nominal Pressure : Max.8bar

Working Temperature : -10~100°C

Threaded : ISO228/1

Processing Technic : Sand blast and nickel plate

Test : 100％leak tested

Handle Material : Aluminium

Brass Material : HPB57-3

Seal Material : PTFE

Size : 1/2"x9,1/2"x9.5,1/2"x10,1/2"x10.5,1/2"x11.8,1/2"x14,1/2"x15

Handle : Iron Lever Handle

Operation : Manual

Marerial : brass

Lead Time : 21 days

Port : Ningbo

Connection Type : NPT

Power : Manual

Pressure Rating : 600 PSI

Suitable Media : Natural Gas

Oem : Provide OEM Services

Technology : forged

Max Pressure : 600 psi

Head Code : Round

End Type : Threaded

Contact Now

Brass Gas AV1029-M Male X Hose Connector PTFE Seal Valve

Specification

forged brass body
sand blast and nickel plated
nominal pressure:Max.8bar(116psi)
temperature:-10~100°C(14～212°F)
threaded ISO228/1
100% leak tested

Technical Specification

Dimensions

SIZE	A	B	C	D	E	F
1/4"M x 9	66.5	9	29	33	9	25
1/2"M x 9	78	9	38	43	15	25
1/2"M x 9.5	78	9.5	38	43	15	25
1/2" M x 10	86	10	38	43	15	33
1/2"M x 10.5	86	10.5	38	43	15	33
1/2" M x 11.8	86	11.8	38	43	15	33
1/2" M x 14	97.5	14	38	43	15	44.5
1/2"M x15	97.5	15	38	43	15	44.5

Product Details

1
The brass valve body and bonnet are both high-density forging, ensuring that there are no blisters, air holes, or leakages. These components are made using special high precision CNC machines, guaranteeing their quality and reliability. The ball valve is designed to be smooth and wear-resistant, providing excellent sealing performance. The brass valve stem is made of hot rolled brass, offering high tensile strength, good toughness, and the ability to withstand long-term use without deformation or fracture. The handle, made of aluminium alloy by casting, features professional surface painting, making it wear-resistant and anti-corrosive. Its small appearance allows for flexible opening and closing when installed in various environments.

2
The ball seat is made of pure PTFE (polytetrafluoroethylene), providing high elasticity and wear resistance, and is not prone to aging. The stainless steel lock screw is internally designed to prevent loosening and can be used for a long time without compromising its functionality. The O-ring is made of imported raw material, specially designed for gas applications, with a small friction coefficient, long service life, and resistance to leakage. Each component is meticulously crafted to ensure durability, reliability, and optimal performance in various applications.

Reminding

The thread, color of handle, materials, etc. can be customized.
Female x Female Brass Gas Ball Valve with Aluminium handle.
Ball valves in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.

Certificates of AV 1029-M

male threaded valve Smooth Brass Gas Ball Valve With Hose Connector X Male PTFE Seal Valve

Brass Gas Ball Valve series

Gas valve is a new type of safety equipment for gas pipeline engineering; It is used to cut off, connect and regulate the gas in the pipeline, with good control characteristics and sealing performance; It is suitable for city gas, liquefied petroleum gas, natural gas, oxygen and other gas medium pipelines.
Gas valves are widely used in gas medium pipelines such as gas, liquefied petroleum gas, natural gas, oxygen, etc. in urban gas supply pipe network systems; The drive forms include manual, worm gear drive, electric, pneumatic, hydraulic, electro-hydraulic linkage and other actuators, which can realize remote control and automatic operation.

Compant Profiles

Taizhou Xingnuo Technology Co., Ltd., formerly known as Yuhuan precision machinery factory, was founded in 1992 with a registered capital of 14.53 million yuan and an area of 13000 square meters. Since its establishment, the company has been engaged in the development and production of brass. The company has accumulated rich production experience It has created a group of professional technicians and established a complete set of product quality assurance system. The company has become a professional manufacturer integrating design, development and production.

The company mainly produces more than a thousand varieties of water separators, valve series, embedded pipe fittings series, heating radiator series, HVAC and other series, mainly made of brass and stainless steel. It has more than 800 sets of production equipment and more than 50 sets of testing equipment and other professional development and production of casting finishing equipment.

Xingnuo regards product quality as the life of the enterprise, and earnestly implements the quality policy of "pragmatic, precise manufacturing, continuous improvement and customer satisfaction", Modern quality management methods and standardized testing procedures are adopted to ensure reliable quality. Xingnuo has a design studio, a laboratory center and a testing center. Our products are exported to Russia, the United States, Germany, Australia, Canada and other countries and regions, and have formed regional and long-term cooperation with many domestic listed companies and distributors. We are your reliable business partner.

Packaging Details

SIZE	Weight(g)	Inner Box(mm)	Carton(mm)	Qty per inner box	Qty per carton
1/4"M x 9	84	19x8x6	31x20x17	6	60
1/2"M x 9	184	19x8x6	31x20x17	6	60
1/2"M x 9.5	184	19x10x6	31x21x20	6	60
1/2"M x 10	187	19x10x6	31x21x20	6	60
1/2"M x 10.5	187	19x10x6	31x21x20	6	60
1/2"M x 11.8	188	19x10x6	31x21x20	6	60
1/2"M x 14	196	19x11x6	31x23x20	6	60
1/2"M x 15	197	19x11x6	31x23x20	6	60
